Interfaces

Navigation: Network Settings

Physical interfaces show VLAN sub-rows underneath. LACP bundles show member interfaces as sub-rows and hide those members from the main list.

Interfaces

Add / Edit forms

Click + Add New to open the creation dialog, or Edit on an existing row to modify a record.

List view

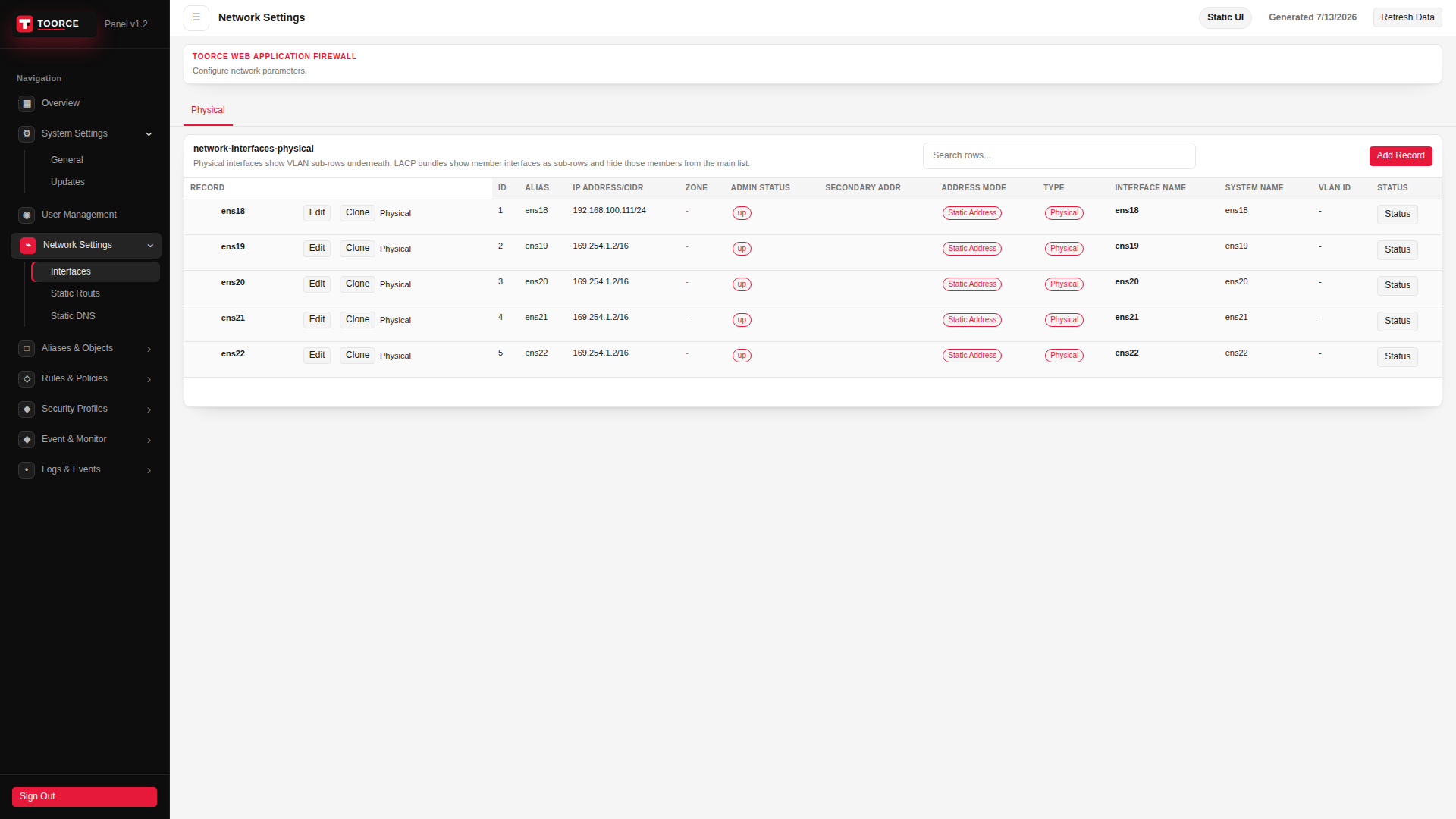

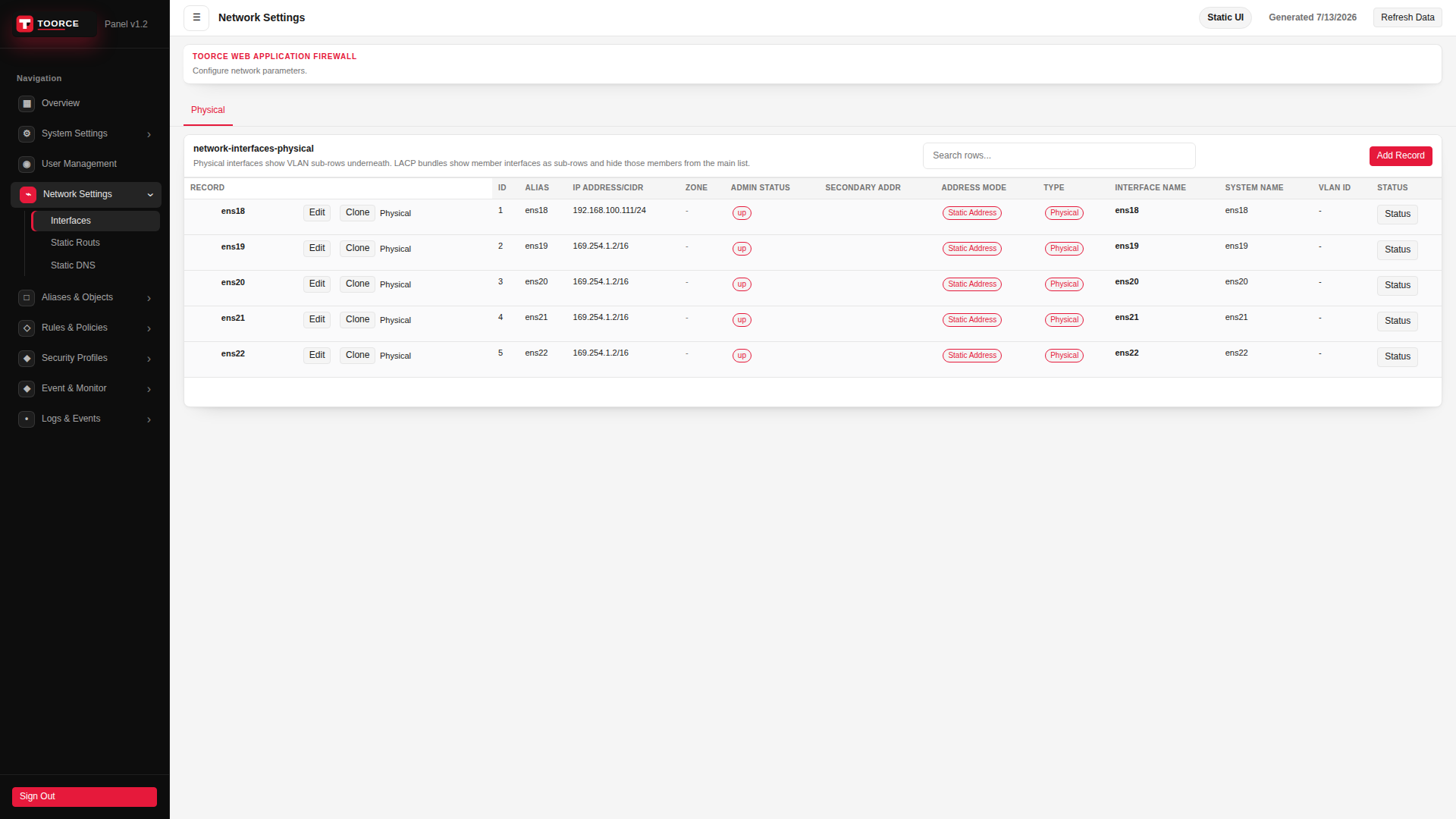

List view

Add form — all tabs

The add dialog contains 5 tabs. Example values in the filled screenshots are for documentation only — do not save them on a production appliance.

General

Field Required Description Example Why this data is needed
Interface Type Yes Physical port or VLAN sub-interface. VLAN Required to determine whether this is a raw NIC or tagged VLAN.
Physical Interface Yes Underlying hardware interface (e.g. enp6s0). enp6s0 Required — VLANs and addresses are bound to a physical port.
System Name Yes OS-level interface name (auto-filled from physical). enp6s0.100 Used by the OS and routing table; must match the configured ifname.
Alias No Friendly label shown in rules (LAN, WAN, DMZ). LAN Makes rule configuration readable — reference "LAN" instead of "enp6s0.100".
VLAN ID Yes 802.1Q tag (1–65534) for VLAN interfaces. 100 Required for VLAN type — identifies the virtual network on the wire.
Zone Yes Security zone assignment (LAN, WAN, DMZ). LAN Required for policy defaults and traffic classification.
Admin Status Yes Enable or disable the interface. Enabled Must be Enabled for the interface to pass traffic.

Empty:

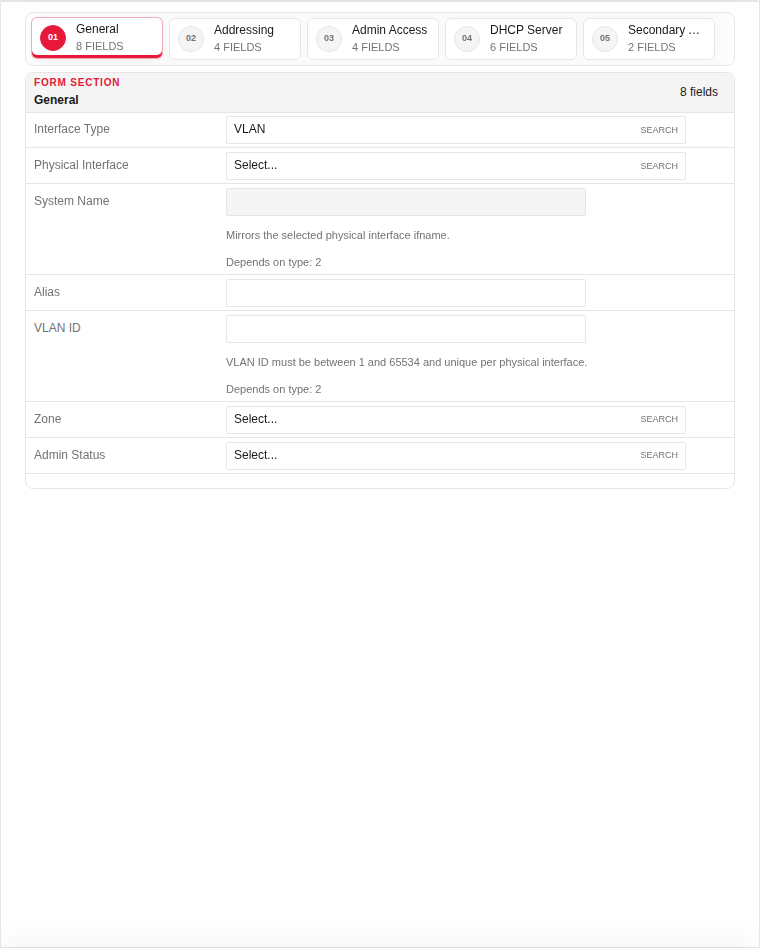

Add — General (empty)

Filled with example data (for illustration — shows why each field needs a value):

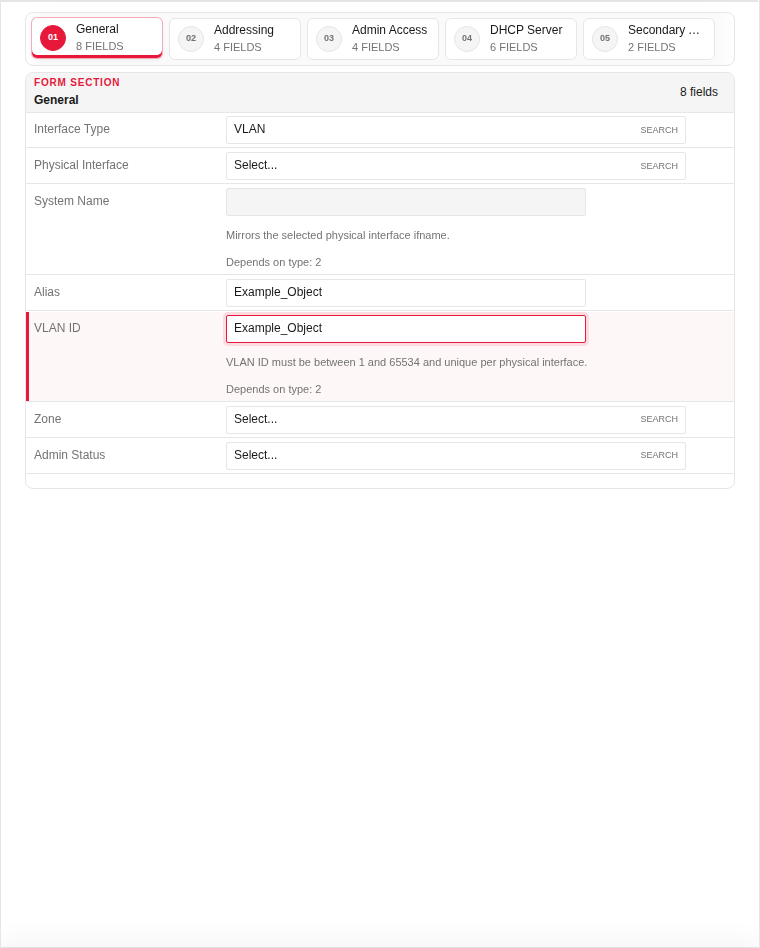

Add — General (filled)

Addressing

Field Required Description Example Why this data is needed
IPv4 Address Yes Interface IP address in CIDR notation. 192.168.100.1/24 Required for routed traffic — without an IP the interface cannot receive or send packets.
Gateway No Default gateway for this interface (WAN only). 192.168.100.254 Required on WAN interfaces so outbound traffic knows the next hop.
MTU No Maximum transmission unit in bytes. 1500 Adjust only if your network uses jumbo frames or PPPoE overhead.

Empty:

Add — Addressing (empty)

Filled with example data (for illustration — shows why each field needs a value):

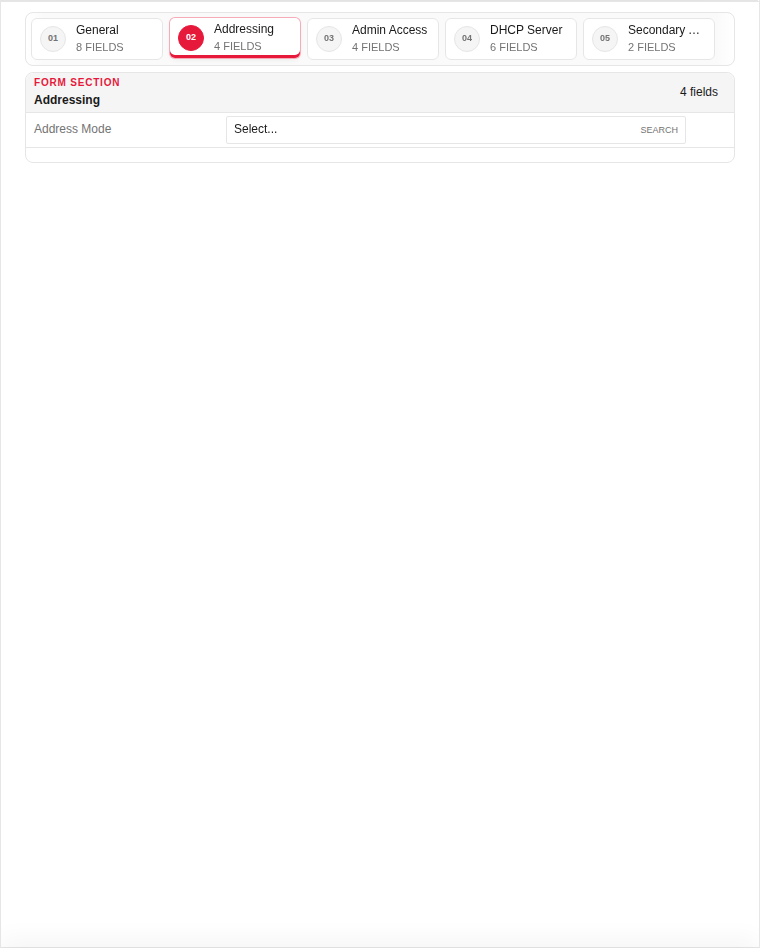

Add — Addressing (filled)

Admin Access

Field Required Description Example Why this data is needed
Allow HTTPS Admin No Permit WAF admin UI access on this interface. Enabled Enable on management VLAN only — avoid exposing admin on WAN.
Allow SSH Admin No Permit SSH management on this interface. Disabled Enable only on trusted management networks.

Empty:

Add — Admin Access (empty)

Filled with example data (for illustration — shows why each field needs a value):

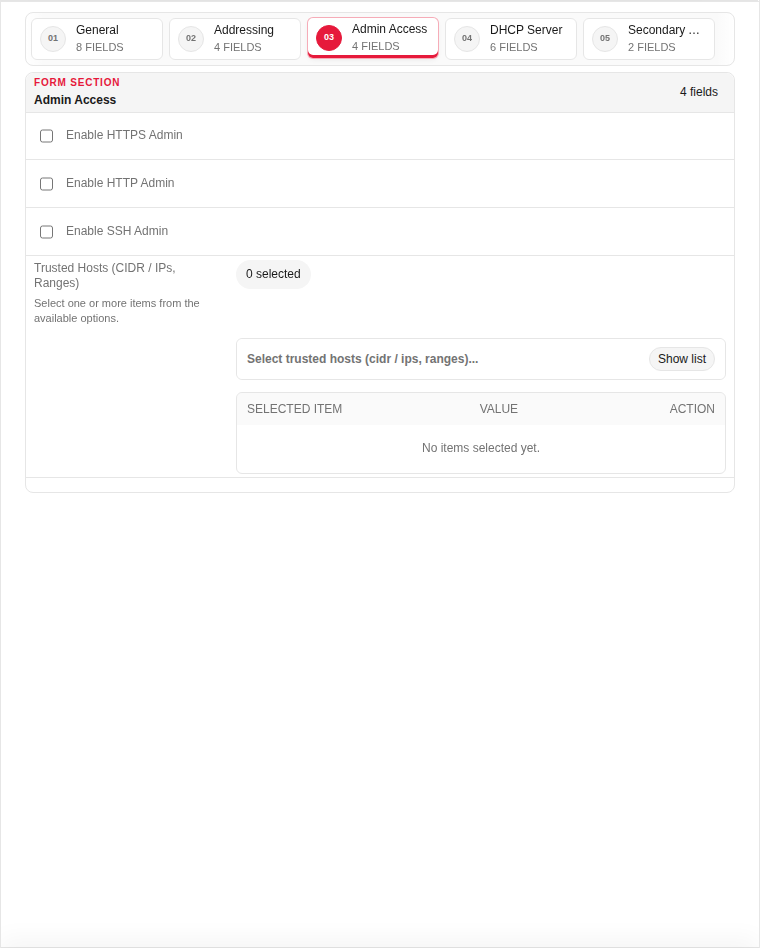

Add — Admin Access (filled)

DHCP Server

Field Required Description Example Why this data is needed
Enable DHCP Server No Run a DHCP server on this interface. Disabled Enable on LAN interfaces that must assign IPs to clients.
DHCP Range Start No First IP in the DHCP pool. 192.168.100.100 Required when DHCP is enabled — defines assignable addresses.
DHCP Range End No Last IP in the DHCP pool. 192.168.100.200 Required when DHCP is enabled — must be within the interface subnet.

Empty:

Add — DHCP Server (empty)

Filled with example data (for illustration — shows why each field needs a value):

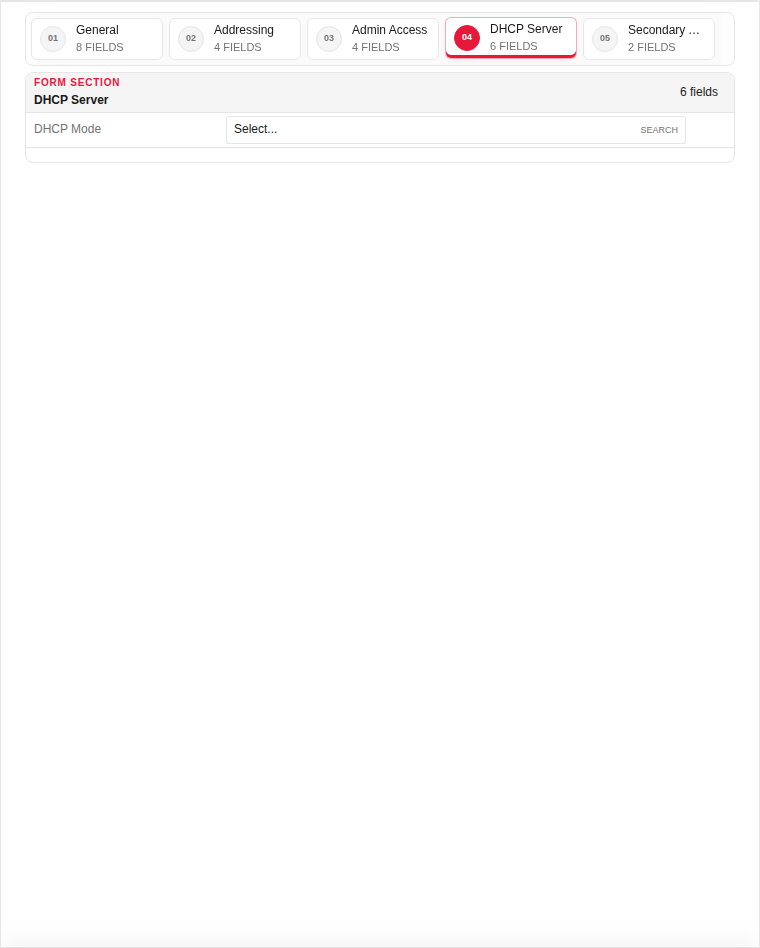

Add — DHCP Server (filled)

Secondary Address

Field Required Description Example Why this data is needed
Secondary IPv4 No Additional IP on the same interface. 192.168.100.2/24 Use when multiple VIPs or subnets share one physical interface.

Empty:

Add — Secondary Address (empty)

Filled with example data (for illustration — shows why each field needs a value):

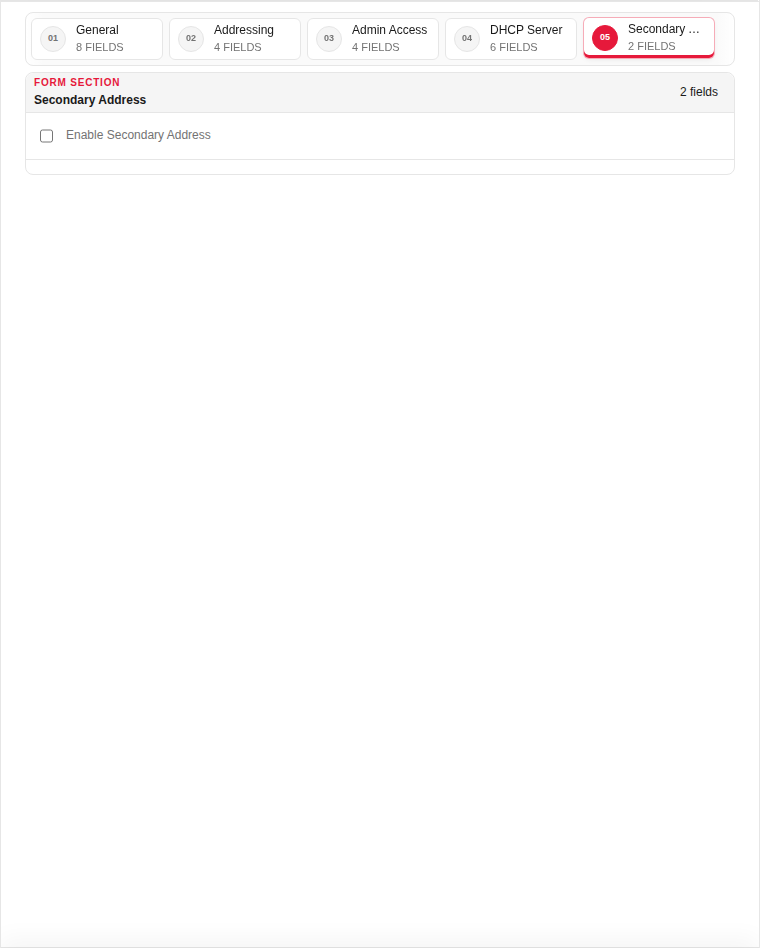

Add — Secondary Address (filled)

Edit form — all tabs

The edit dialog contains 5 tabs. Fields are the same as Add — values show the currently saved record:

General

Field Required Description Example Why this data is needed
Interface Type Yes Physical port or VLAN sub-interface. VLAN Required to determine whether this is a raw NIC or tagged VLAN.
Physical Interface Yes Underlying hardware interface (e.g. enp6s0). enp6s0 Required — VLANs and addresses are bound to a physical port.
System Name Yes OS-level interface name (auto-filled from physical). enp6s0.100 Used by the OS and routing table; must match the configured ifname.
Alias No Friendly label shown in rules (LAN, WAN, DMZ). LAN Makes rule configuration readable — reference "LAN" instead of "enp6s0.100".
VLAN ID Yes 802.1Q tag (1–65534) for VLAN interfaces. 100 Required for VLAN type — identifies the virtual network on the wire.
Zone Yes Security zone assignment (LAN, WAN, DMZ). LAN Required for policy defaults and traffic classification.
Admin Status Yes Enable or disable the interface. Enabled Must be Enabled for the interface to pass traffic.

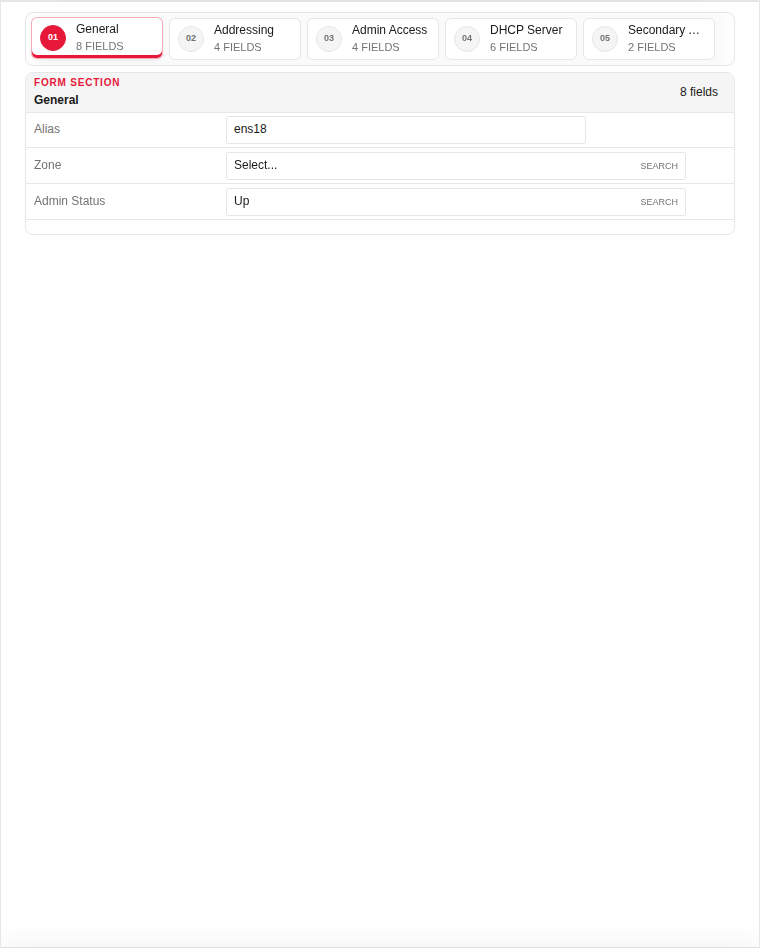

Edit — General

Addressing

Field Required Description Example Why this data is needed
IPv4 Address Yes Interface IP address in CIDR notation. 192.168.100.1/24 Required for routed traffic — without an IP the interface cannot receive or send packets.
Gateway No Default gateway for this interface (WAN only). 192.168.100.254 Required on WAN interfaces so outbound traffic knows the next hop.
MTU No Maximum transmission unit in bytes. 1500 Adjust only if your network uses jumbo frames or PPPoE overhead.

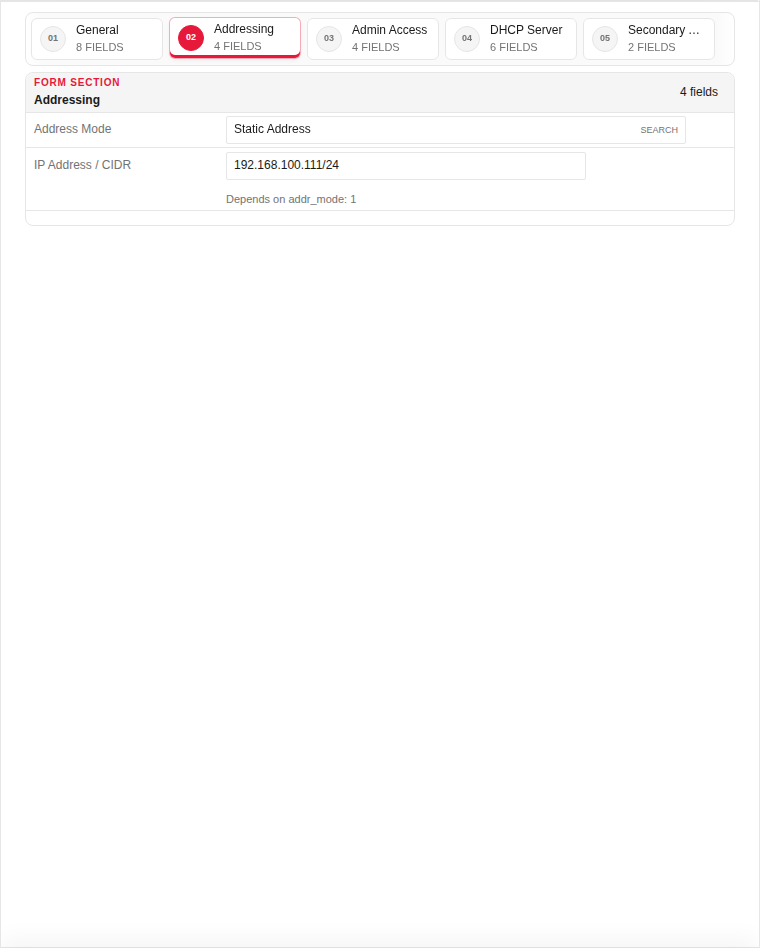

Edit — Addressing

Admin Access

Field Required Description Example Why this data is needed
Allow HTTPS Admin No Permit WAF admin UI access on this interface. Enabled Enable on management VLAN only — avoid exposing admin on WAN.
Allow SSH Admin No Permit SSH management on this interface. Disabled Enable only on trusted management networks.

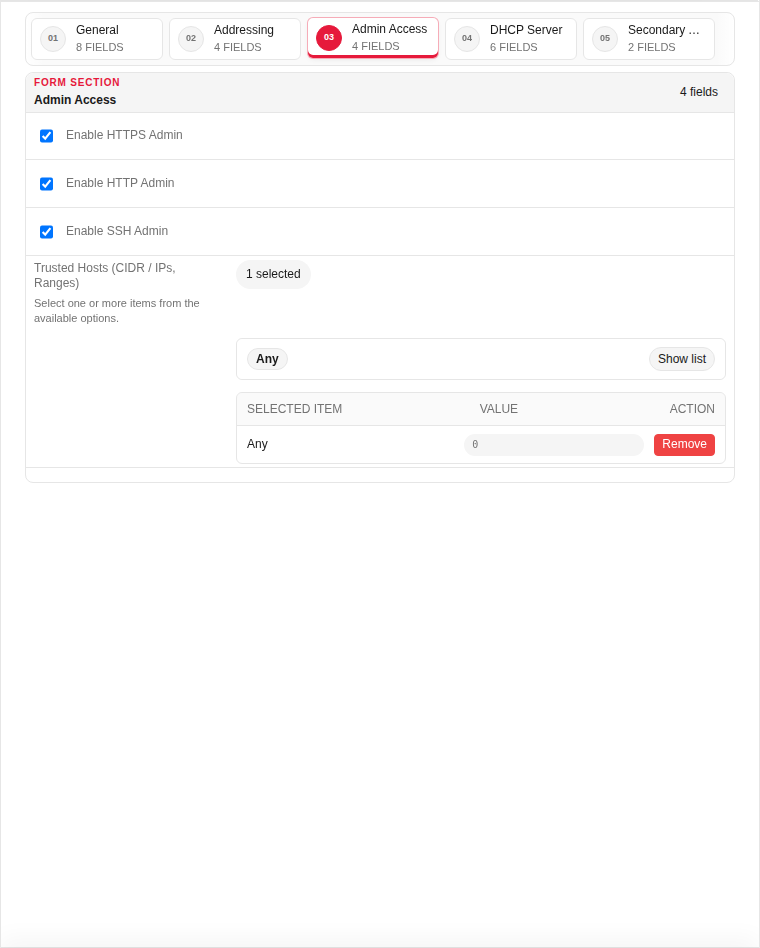

Edit — Admin Access

DHCP Server

Field Required Description Example Why this data is needed
Enable DHCP Server No Run a DHCP server on this interface. Disabled Enable on LAN interfaces that must assign IPs to clients.
DHCP Range Start No First IP in the DHCP pool. 192.168.100.100 Required when DHCP is enabled — defines assignable addresses.
DHCP Range End No Last IP in the DHCP pool. 192.168.100.200 Required when DHCP is enabled — must be within the interface subnet.

Edit — DHCP Server

Secondary Address

Field Required Description Example Why this data is needed
Secondary IPv4 No Additional IP on the same interface. 192.168.100.2/24 Use when multiple VIPs or subnets share one physical interface.

Edit — Secondary Address
